Victron Energy inverters/chargers

Nothing ruins an adventure faster than technology that fails at the crucial moment. Anyone who travels self-sufficiently knows that the inverter is the centerpiece - and compromises are dangerous here. While standard inverters often capitulate with sensitive laptops or powerful coffee machines, Victron Energy has been providing the answer for professionals for decades. An absolutely pure sine wave, brute peak power and reliability that has been tested under the toughest conditions in the marine sector.

A Victron inverter is more than just a voltage converter. It is the heart of your energy system - a promise of maximum reliability, longevity and intelligent system integration, whether powered by a solar array or a solid service battery.

Technical superiority: Why Victron is simply better

The technical heart of every Victron inverter is its uncompromising design, which rests on two key pillars:

1. the perfect, pure sine wave

• The problem: Cheap inverters often only generate a "modified" sine wave. This impure form of current can interfere with or even destroy sensitive electronics (laptops, coffee machines, chargers for e-bikes). What you need is a pure sine wave.

• Due to their fast switching, HF inverters generate more harmonics, i.e. electrical "distortions", which can lead to interference with sensitive electronics, humming or overheating devices in the motorhome, as well as to higher energy loss and lower reliability in continuous operation.

• The Victron solution: A Victron inverter supplies power in exact mains quality. You can connect any device without having to worry - just like at home.


2. the robust toroidal transformer

• The problem: Many modern inverters use lightweight high-frequency converters. These often switch off when a device with a high starting current (e.g. a refrigerator compressor, a pump or a power tool) starts.

• The Victron solution: Victron relies on extremely robust, proven toroidal transformers. They may be heavier, but they effortlessly deliver the enormous peak power required to reliably start even the most demanding loads. So don't be surprised about the weight: a Victron inverter weighs considerably more than cheap Chinese inverters. This extra weight is the copper of the massive toroidal transformer - your guarantee for real power and longevity.


3. the intelligent, whisper-quiet fan control

• The problem: Cheap inverters often have fans that run constantly or howl loudly at the slightest load. This disturbs the peace and quiet in the motorhome or on the boat considerably.

• The Victron solution: Victron devices are known for their intelligent, load and temperature-controlled fan regulation. In the low and medium load range, they usually work absolutely silently. The fan only starts up when really high power is required or the ambient temperature demands it. For you, this means: power like at home, but without the noise.

Phoenix, MultiPlus or Quattro: Which Victron Energy inverter is right for you?

Victron offers the perfect solution for every application. Choosing the right model depends on what you need: just converting electricity or complete energy management?

1st Victron Phoenix series: The specialist for pure current conversion

The Phoenix is a pure sine wave inverter. It is the perfect choice if you already have a separate Victron charger or just need a reliable 230V power source at your battery.

• Compact & Powerful: Available from small 250VA for the laptop up to large 5000VA for complete workshops.
• Smart functionality: Many models in the Phoenix range are available as "Smart" versions and can be configured and monitored directly via Bluetooth and the VictronConnect app - without any cables.
• Connection: Smaller models communicate via VE.Direct, larger models via VE.Bus.

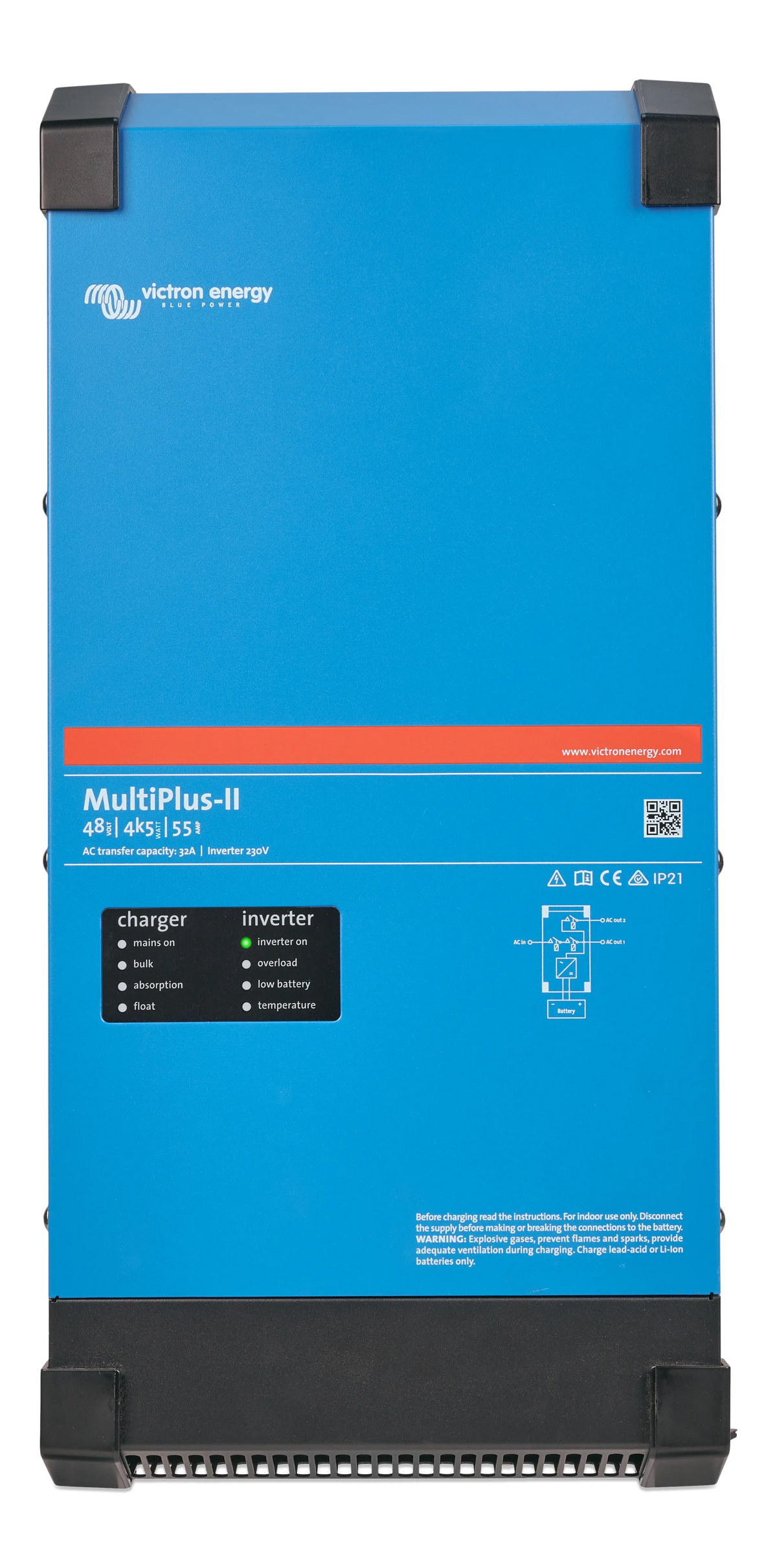

2nd Victron MultiPlus series: The ingenious all-in-one solution

The MultiPlus (and its successor MultiPlus-II) is Victron's Swiss army knife. It is a combination of a powerful inverter AND an intelligent battery charger.

• Shore power limitation & shore power support (PowerAssist): The killer feature for campers! The MultiPlus can automatically limit the available shore power (shore power limitation) so that the often weak fuse at the pitch is not overloaded. In the event of high power requirements (e.g. hairdryer or coffee machine), it switches on battery power at lightning speed (shore power support/PowerAssist). This allows you to operate large appliances without your neighbor's lights going out.
• UPS function: In the event of a mains failure, the MultiPlus switches to battery operation in less than 20 milliseconds. Your devices continue to run without interruption.
• GX versions: Models such as the MultiPlus-II GX have the complete control system (like a Cerbo GX) already integrated - the ultimate compact solution.

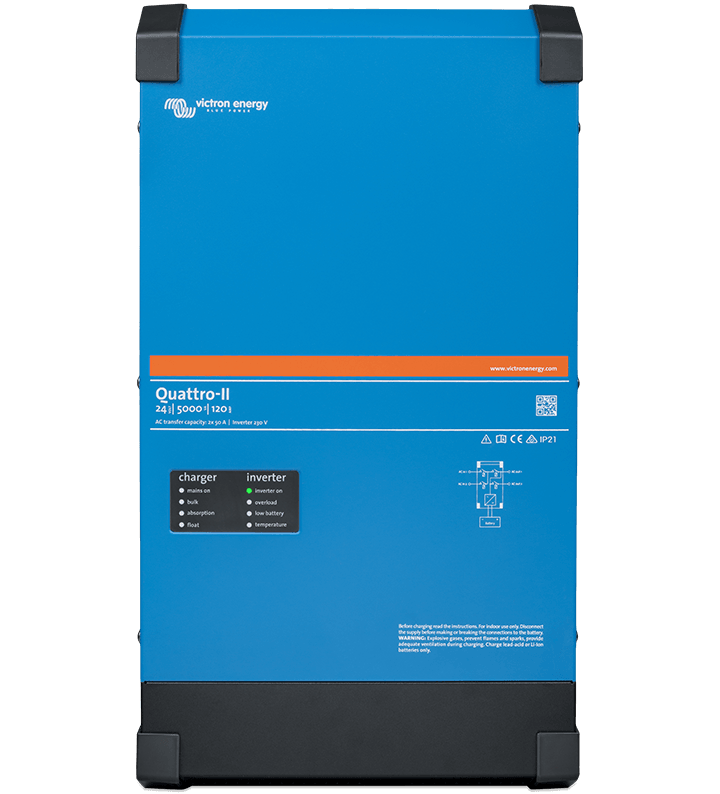

3. Victron Quattro series: Maximum flexibility for complex systems

The Quattro can do everything the MultiPlus can do, but has two AC inputs.

• Two independent inputs: Connect shore power AND a generator. The Quattro switches on the active sources, starts the generator automatically if required and ensures an uninterrupted power supply.

The smart Victron ecosystem: More than just an inverter

The true strength of Victron Energy lies in the perfect interaction of all components. Your Victron inverter is part of an intelligent network that you can expand on a modular basis.

• VictronConnect App: The tool for direct configuration and monitoring via Bluetooth or VE.Direct cable.

• GX devices (e.g. Cerbo GX): They are the brain of your entire system. This is where all the information from your Multiplus or Quattro, your Victron solar charge controller (e.g. a SmartSolar MPPT) and your battery monitor come together.

• VRM portal (Victron Energy Monitoring): As soon as a GX device is connected to the Internet, you have worldwide access to all your system's data. You can analyze consumption, set alarms and even change settings remotely.

• Parallel connection & 3-phase operation: Need more power? No problem. Many Victron inverters can be connected in parallel to double or triple the power. Three devices can also form a powerful 3-phase network (three-phase current).

• VE.Smart Networking (the budget tip): Want a coordinated system but don't want to invest in a Cerbo GX straight away? No problem. Devices such as the SmartSolar charge controller, a SmartShunt or special battery sensors can form their own wireless network via Bluetooth. They exchange important data such as the exact voltage and temperature so that the charging of your batteries is perfectly optimized - without the need for a central control unit.

Guide: How do I find the right size for my inverter?

Before you calculate the power, an important note on the type designation: Victron specifies the power of its devices prominently in VA (volt-amperes). As a rule of thumb, the continuous output in watts is around 80-85% of the VA value. A 1200VA device therefore supplies around 1000W continuously. Keep this in mind when making your choice!

The most important question is: What do you want to operate?

1. Add up the power: Add up the wattages of all devices that are to run simultaneously (e.g. coffee machine 1500W + laptop 100W = 1600W).
2. Note the starting currents: Appliances with motors (refrigerator, pump, power tool) need a multiple of their rated power for a short time. Choose an inverter whose peak power covers this starting current.
3. Select voltage:

• 12V: The standard in the car and camping sector for systems up to approx. 3000VA.
• 24V: More efficient for higher outputs, often found in larger motorhomes or on boats.
• 48V: The standard for home storage systems (ESS) and large off-grid systems, as the currents are lowest here (thinner cables, fewer losses).

Example: A Nespresso coffee machine (approx. 1200W) requires a Victron Phoenix inverter with at least 1600VA, preferably 2000VA, to safely absorb the power peaks. Even a modern compressor cooler can bring cheap inverters to their knees due to their high starting current. A Victron Phoenix 500VA can easily cope with these peaks, while others switch off due to overload.

Your project deserves a professional solution

Choosing the right inverter is the most important decision for the reliability of your entire system. With a Victron inverter, you are investing in technology that has proven itself thousands of times over and is used by professionals worldwide.

Whether you are planning a small system for your camper or a complex, self-sufficient power plant for your home - we at Verkauf-Bochum.de are your competent partner. We will help you to find the perfect solution for your requirements from the wide range of Victron products.
